Caravan Axle Stand Load Testing

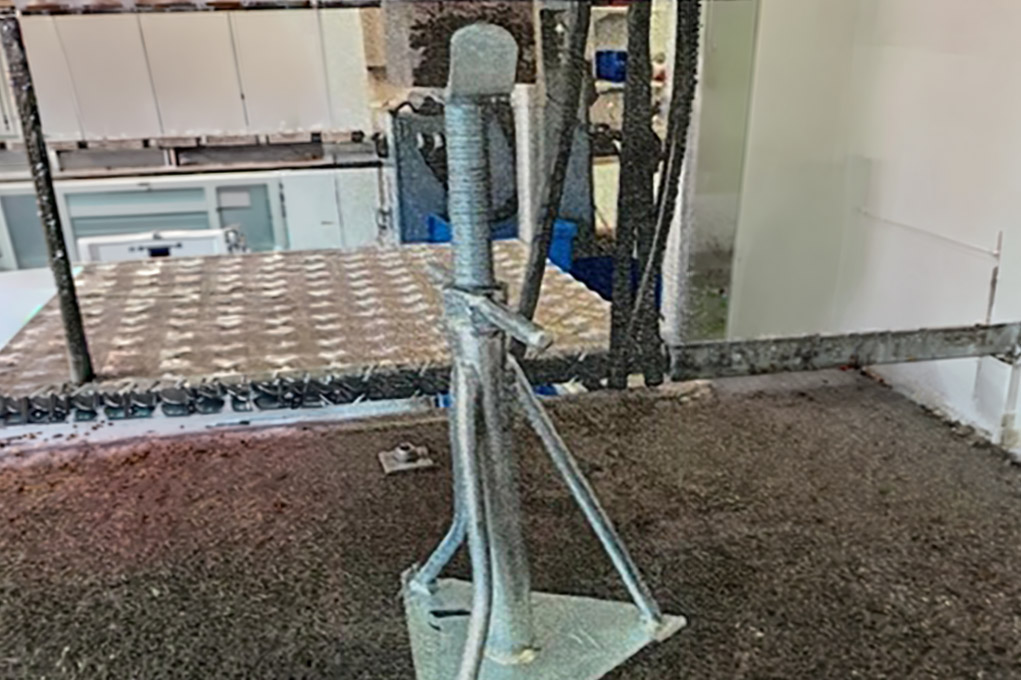

Common Caravan Axle Stand
Test result summary
Test criteria
8,000 kg
Ultimate Load
8,745.59 kg
Failure Tolerance
9.32%
Tested to 8,000 kg test criteria

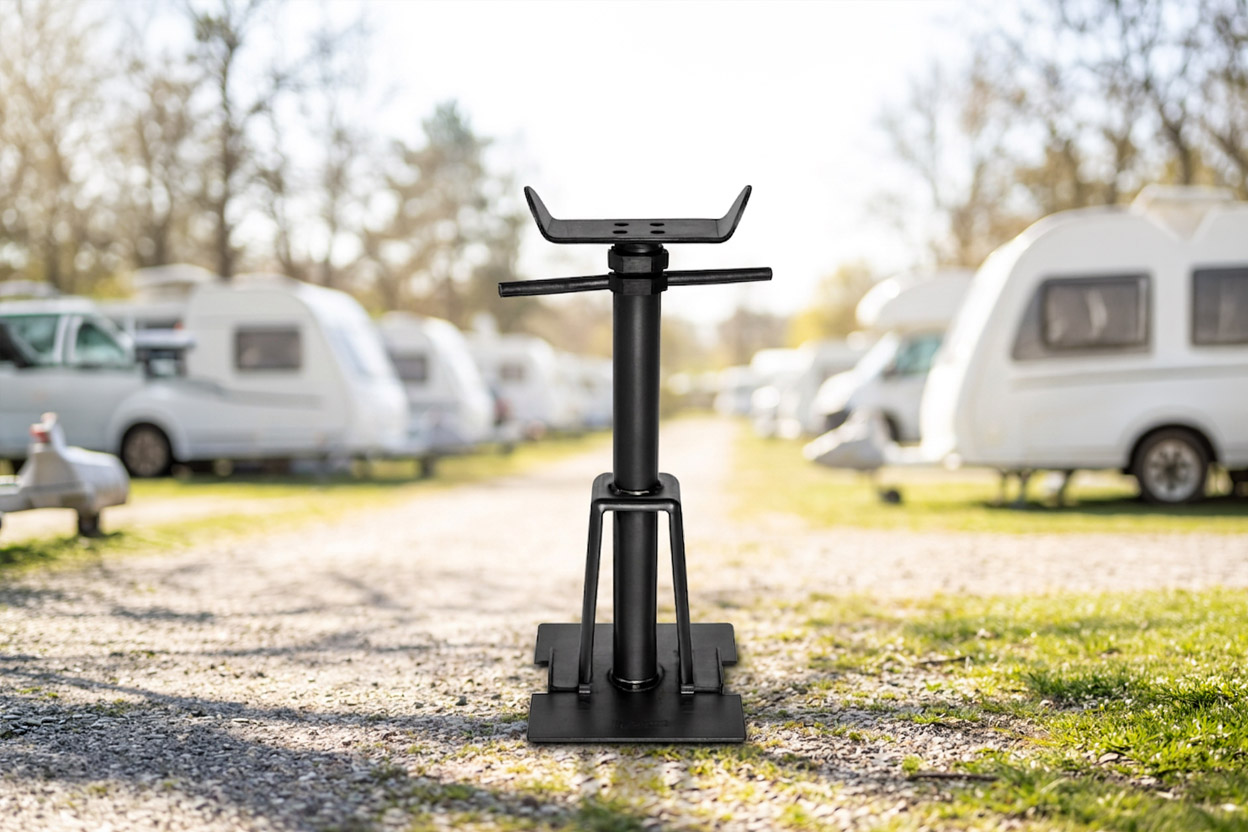

Grainger’s Caravan Axle Stand
Test result summary
Test criteria
8,000 kg
Ultimate Load
11,577.86 kg
Failure Tolerance
44.72%
Tested to 8,000 kg test criteria
Maximum loading by size
| Size | Max Loading |
|---|---|
| Small | 8,000 kg |
| Medium | 7,000 kg |
| Large | 6,000 kg |
| Extra Large | 5,000 kg |
NCC Approved
Ultimate Load Advantage
2,832.27 kg
Grainger’s stand recorded a higher ultimate load than the common caravan axle stand in the same comparison.
Failure Tolerance Difference
35.40 pts
44.72% for Grainger’s stand versus 9.32% for the common comparator.
Testing Context
March 2022
External testing by BTL with both products shown against the same 8,000 kg test criteria.
